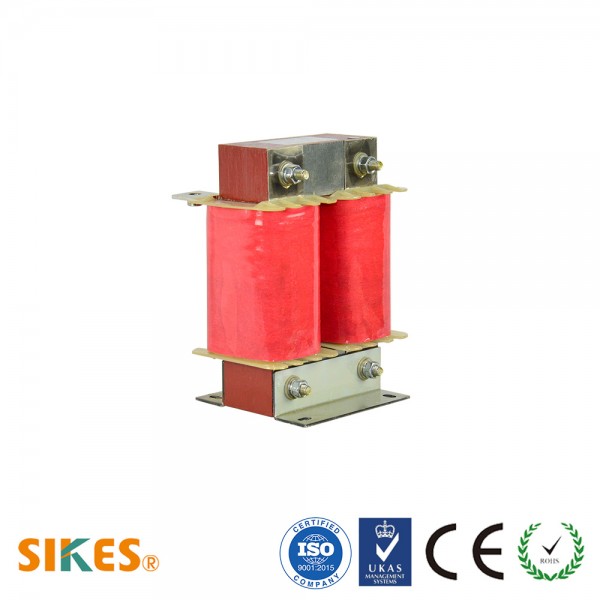

DC Network choke for servo motor 127A [Customized]
Description of DC Reactor:
series network chokes also realize the two way benefit of line chokes.
Line voltage distortion and notching caused by the drive is filtered
from the incoming AC line supply and conversely interference imposed on
the line by other devices is filtered from the drive. The available
short circuit current from the line is limited.DC Choke also known as DC Reactor.
ADVANTAGE of DC Reactor:
1.High Temperature Resistant : The inside insulation material is
combined with frameless process, the choke’s temperature heat-resisting
ability is strong, and the class F or H is optional.
2.Noise Decrease : Choke air gap adopts argon arc welding process, which has low noise, small magnetic flux leakage and stable inductance.
3.Electric Magnetic Resistance: Coiled with foil winding process, choke has strong resistance of electric magnetic force and good presentation quality
4.Small volume: Core with grain-oriented cold-rolled silicon steel sheets, making chokes have high reliability, small size, light weight and low cost.
APPLICATION of DC Reactor:
1.Reducing the current in DC circuit.Ensuring continous current when inductance value reach a certain degree.
2.Reducing and preventing the rectifier bridge from damaging and capacitance overheating caused by pulse current.
3.Improving power factor,reducing the AC pulse to the DC bus bar, limiting grid voltage transient.
1.Inverter (System) Voltage:0.4KV
Characteristic of this series:
2.Voltage Range: DC 600V-1200V
3.Dielectric Strength: Core-winding,AC 3000V/50Hz/5mA/ free of demage in 60s (test in factory)
4.Insulation Resistance:Core-Winding,DC 1000V,Resistance >100M ohm
5.Noise: Less than 65dB(to be measured at the point 10 meter away from the reactor horizontally
6.Standard: GB 19212.1-2008GB/T1094.6-2011
|Nominal voltage range(V)||1200|
|Nominal Current range(A)||127|
